液态发酵饲饲料及喂系统优势： 1、混合搅拌后的发酵液态料适口性好，可刺激猪的采食欲望，增加采食量； 与干料相比饲料消耗转化率可提高 10％，饲料费用可节省 11％ - 13％。 尤其高温天气。 2、降低成本，可原料多样化。 3、不同阶段，不同配方，实现分阶段精准饲，尤其适用于母猪和乳猪阶 段喂养。 4、精度高，全年饲料误差控制在万分之一，进食时间、均匀度等得到统 一保证。 5、减少粉尘、粪便环保、高度智能化。

Advantages of liquid fermentation feed and feeding system: 1. The fermented liquid material after mixing and stirring has good palatability, which can stimulate the appetite of pigs and  increase the feed intake; Compared with dry feed, the conversion rate of feed consumption can be increased by 10%, and  the feed cost can be saved by 11-13%. Especially in hot weather. 2. Reduce cost and diversify raw materials. 3. Precise feeding in different stages with different formulas, especially suitable for sows and Suckling pigs. 4. High accuracy, the annual feed error is controlled at 1/10,000, feeding time and uniformity are guaranteed uniformly. 5, reduce dust, feces environmental protection, highly intelligent.

真正精确控制的 液体后喷涂 Truly accurate liquid  after spraying

性能特点： performance feature 1、实现物料的连续性的精确喷涂，重量偏差控制在 1% 以内； 2、真正的称重式比例喷涂，对物料的比重无差别对待， 实现傻瓜式操作，简单易懂并便于维护。 3、液体恒温，雾化喷涂，实现称重和流量的双控制，并自动核准。 4、螺带式绞龙输送装置，混合更均匀。 1. Realize the accurate spraying of material continuity, and control the  weight deviation within 1%; 2, the real weighing proportional spraying, no difference in the proportion  of materials, Foolproof operation, easy to understand and easy to maintain. 3, liquid constant temperature, atomizing spraying, achieve double  control of weighing and flow, and automatic approval. 4, screw belt type wringing dragon conveying device, mixing more even.

皮带的运动速度，我们通过变频器的频率来 进行校对、调整，并当产量合适的时候恒定速度。 Belt speed, we through the frequency converter Calibrate, adjust, and maintain a constant rate when output is appropriate.

液体喷涂 - 液体添加 Liquid spraying - liquid addition

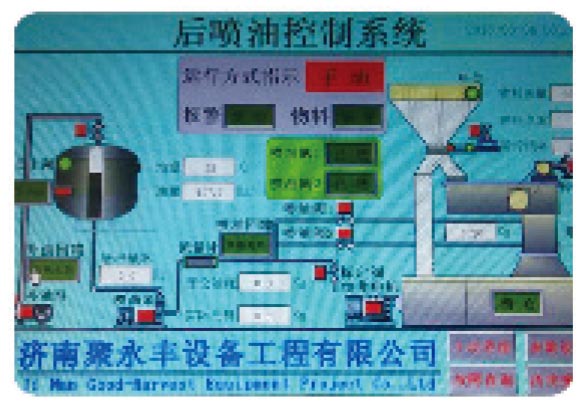

称重式液体罐，实时减重式计量。 通过流量泵联锁颗粒物料， 调整喷涂量。 进油时统计单次和累计进油量， 出油时统计单次和累计出油量。 设定定时对液体流量计 进行自动校核。 Weighing liquid tank, real-time weight reduction measurement. Interlock granular materials through flow pump, Adjust spray amount. Statistics of single and cumulative oil intake, Statistics of single and cumulative oil output. Set timing for liquid flow meter Automatic check.
